Rugged Data Collector RFID Portable Data Terminal Barcode Scanner IP67

Name: Rugged Data Collector RFID Portable Data Terminal Barcode Scanner IP67
Brand: Hanbu
Price: 80 USD

Wholesale Rugged Data Collector RFID Portable Data Terminal Barcode Scanner IP67 from china suppliers

Brand Name : Hanbu

Model Number : H5K

Certification : CE,MSDS

Place of Origin : China

MOQ : 2 pieces

Price : 80-380 usd

Payment Terms : T/T, Western Union, L/C

Supply Ability : 30000 pieces per month

Delivery Time : 3 to 5 working days

Packaging Details : 20 pieces per carton, carton size: 50*29*43cm,12kg/ctn

Product : Data Collector

Scanner : Professional 2D Scan Engine

Data Collection Method : Real-time monitoring

Data Visualization : Interactive dashboards

Feature : Handheld Android Data Collector

Ip Standard : IP67 Protection Standard

Processor : MT6769, Octa-core

Display : 4.2 inch touch screen

Manufacturer : Hanbu

Memory : 6GB Ram, 64GB Rom

Contact Now

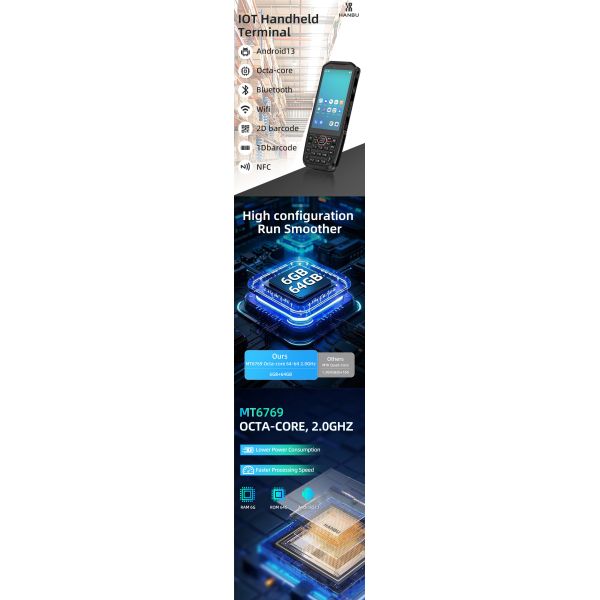

Hanbu H5K Rugged Data Collector - Barcode/RFID/NFC Scanning, IP67 & 12-Hour Battery

1. Product Description

H5K Rugged PDA offers unmatched durability with dustproof, waterproof, and drop-resistant features. It's IP67 protect standard, powerful processor, and long battery life ensure seamless performance for inventory management, asset tracking, and field data collection. With 4G/5G, Wi-Fi, Bluetooth, and barcode scanning, it’s the ultimate tool for boosting productivity in industrial and outdoor settings.

2. Key feature

6GB Ram + 64GB RomLarge memory,ensure smooth running;

5200mAh large capacity battery;

IP67 protection,dust-proof,water-resistant;

Professional 2D scan engine;

Supports harsh operating environment temperature

3. Specification

H5K handheld terminal specification
Performance
CPU	MT6769 Octa-core 64-bit 2.0GHz high-performance proces
OS.	Android 13
Memory	6GB RAM + 64GB ROM
Data Communication
WLAN	Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
WWAN	2G:GSM(850/900/1800/1900MHz)
	3G:WCDMA(850/900/1900/2100MHz)
	4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
Bluetooth	Support Bluetooth 5.0+BLE,transmission distance 5-10 meters
GNSS	Support GPS,Galileo, Glonass, Beidou
Physical Specifications
Dimensions	162 mm×64.8 mm×25.9mm(The thinnest)
Weight	＜300g (Depends on device function configuration)
Display	4.2" IPS color display,resolution 720x1280
TP	Supports multi-touch
Battery capacity	Rechargeable polymer battery (3.8V 5200mAh)
	Standby time ＞ 350 hours
	Working time ＞12 hours
	Charging time < 3 hours, use standard power adapter and data cable
	Built-in spare battery, hot-swappable
Expansion Card slot	NANO SIMx2,TF card ×1, SIM card ×1(Optional )
Communication interface	Type-C 2.0 USBx1,Support OTG function
Audio	Speaker (loudness >95db), microphone, Receiver
Keypad	Total 25 keys, 22 keys on the front, front keys: 0~9 numeric keys,. Key, space key, primary scan key, arrow key ×4, Fn switch key, Aa Case switch key, delete key, EN confirm key, return key;
Keypad	Side Keys: Side power key, scan key ×2
Sensors	Gravity sensor, light sensor, distance sensor
Language/Input Method
Input	English, Pinyin, Five strokes, Handwriting input, Support soft keypad
Language	Chinese, English, Korean, Japanese, Malaysian,etc.
Data Collection
Barcode Scanning(Standard)
2D Scanning engine	N6602-W2
1D Symbologies	Code128(ISBT 128,AIM 128,GS1 128),EAN-13,EAN-8,UPCE0,UPCE1,UPC-A,ISBN,ISSN,Code11,Interleaved 2 of 5,Code39,Code93,Code32,Codabar,Matrix 2 of 5,Industrial 25,IATA25,GS1 DataBar, GS1 DataBar Limited,GS1 DataBar Expanded,MSI Plessey,Plessey,Composite,etc.
2D Symbologies	QR,Micro QR,Data Matrix,PDF417,Micro PDF417,
2D Symbologies	Aztec,Maxicode,Dotcode,Composite,HanXin,etc.
Camera(Standard)
Rear camera	20MP camera, support autofocus, flash, anti-shake, macro shooting
Front camera	5MP color camera
NFC(Standard)
Frequency	13.56MHz
Protocol	Support ISO14443A/B, 15693 agreement
Distance	2cm-5cm
User Environment
Operating temperature	-20℃ - 55℃
Storage temperature	-40℃ - 70℃
Environment humidity	5%RH--95%RH(no condensation)
Environment humidity	temperature range, 6 sides can withstand a height of 1.5 meters,falling to the marble.
IP standard	IP67
Accessories
Standard	Adapter, Data cable, Protective film, Instruction manual

4. Application Scenarios:

1. Warehouse & Inventory Management

Scenario: Real-time stock tracking in large warehouses.
How It Works:

Scan barcodes to update inventory levels instantly.
Sync data with WMS (Warehouse Management Systems) to prevent stockouts.
Key Benefit: Reduces manual counting errors by 90% and improves audit efficiency.
2. Retail Store Operations

Scenario: Streamlined checkout and shelf management.
How It Works:
Use handheld data collectors for price checks, shelf replenishment, and mobile POS integration.
Capture customer purchase patterns via item-level scans.
Key Benefit: Enhances in-store customer experience and optimizes restocking workflows.
3. Logistics & Delivery Tracking

Scenario: Parcel sorting and delivery verification.
How It Works:
Scan shipping labels to update delivery status in real time.
GPS-enabled devices track fleet movements and ETAs.
Key Benefit: Cuts misdeliveries by 70% and boosts supply chain transparency.
